SKF軸承FBSA210/DB
FBSA210/DB軸承
更新日期：2016/8/8 手機版：FBSA210/DB軸承 點擊量SKF FBSA210/DB軸承的最新使用條件，包括SKF FBSA210/DB軸承使用環境溫度，不同潤滑條件下的額定轉速，振動工況下的載荷情況等，請咨詢工程師。
- 型號：FBSA210/DB
- 品牌：SKF
- 系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- 內徑：50 mm
- 外徑：124 mm
- 厚度：66 mm
【電話：020-36026999】

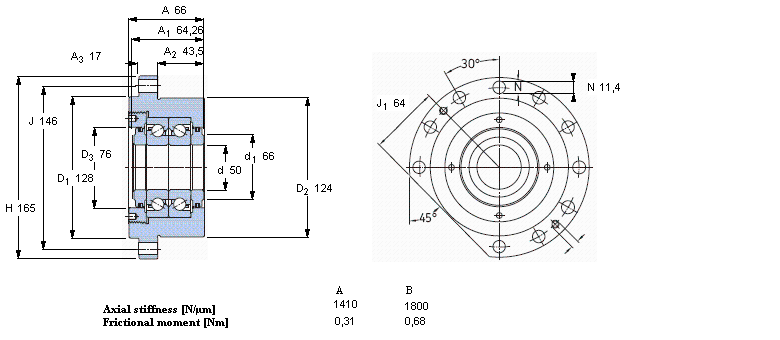

FBSA210/DB軸承尺寸表
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 50 | 124 | 66 | 46,5 | 146 | 5,4 | 4800 | 2400 | 5,7 | FBSA 210/ DB | BSDU 250 DD | |
FBSA210/DB相同內外徑、厚度
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- FBSA210/DB軸承
- 50
- 124
- 66
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA210/DF軸承
- 50
- 124
- 66
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
FBSA210/DB軸承品牌互換
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- FBSA210/DB軸承
- 50
- 124
- 66
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
