SKF軸承FBSA210A/QFC
FBSA210A/QFC軸承
更新日期：2016/8/8 手機版：FBSA210A/QFC軸承 點擊量SKF FBSA210A/QFC軸承的最新使用條件，包括SKF FBSA210A/QFC軸承使用環境溫度，不同潤滑條件下的額定轉速，振動工況下的載荷情況等，請咨詢工程師。
- 型號：FBSA210A/QFC
- 品牌：SKF
- 系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- 內徑：50 mm
- 外徑：128 mm
- 厚度：106 mm
【電話：020-36026999】

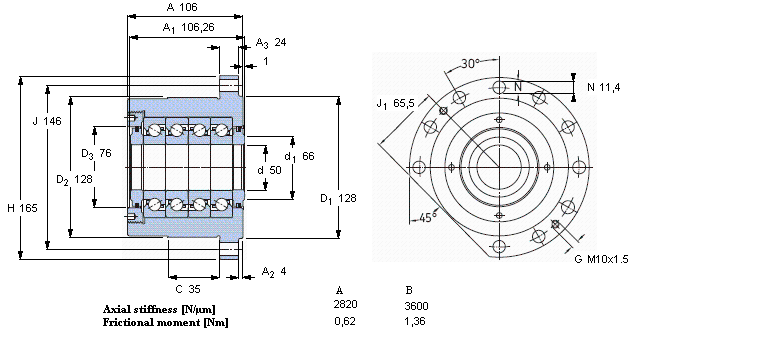

FBSA210A/QFC軸承尺寸表
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 50 | 128 | 106 | 75,795 | 292 | 10,8 | 3000 | 1500 | 9,3 | FBSA 210 A/ QFC | BSQU 250/1 TFT | |
FBSA210A/QFC相同內外徑、厚度
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- FBSA210A/QBC軸承
- 50
- 128
- 106
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA210A/QFC軸承
- 50
- 128
- 106
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
FBSA210A/QFC軸承品牌互換
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- FBSA210A/QFC軸承
- 50
- 128
- 106
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
