SKF軸承FBSA207/QFC
FBSA207/QFC軸承
更新日期：2016/8/8 手機版：FBSA207/QFC軸承 點擊量FBSA207/QFC軸承是SKF公司持續改進的產品之一，其性能在逐步得到改善和加強，SKF FBSA207/QFC軸承的技術參數請與我們工程師聯系。
- 型號：FBSA207/QFC
- 品牌：SKF
- 系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- 內徑：35 mm
- 外徑：90 mm
- 厚度：86 mm
【電話：020-36026999】

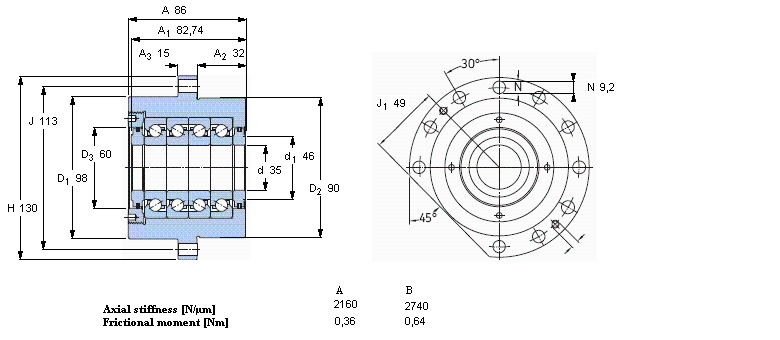

FBSA207/QFC軸承尺寸表
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 35 | 90 | 86 | 59,495 | 196 | 7,3 | 3500 | 1750 | 4,6 | FBSA 207/ QFC | BSQU 235 TFT | |
FBSA207/QFC相同內外徑、厚度
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- FBSA207/QBC軸承
- 35
- 90
- 86
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA207/QFC軸承
- 35
- 90
- 86
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
FBSA207/QFC軸承品牌互換
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- FBSA207/QFC軸承
- 35
- 90
- 86
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
