SKF軸承FBSA204/DB
FBSA204/DB軸承
更新日期：2016/8/8 手機版：FBSA204/DB軸承 點擊量選型提示：上表并未列出詳細的SKF FBSA204/DB軸承參數，選型時僅作尺寸與基本結構的參考，詳細的載荷能力、適用溫度、極限轉速、潤滑性能、游隙、安裝條件等，請聯系我們的工程師。
- 型號：FBSA204/DB
- 品牌：SKF
- 系列：角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- 內徑：20 mm
- 外徑：60 mm
- 厚度：47 mm
【電話：020-36026999】

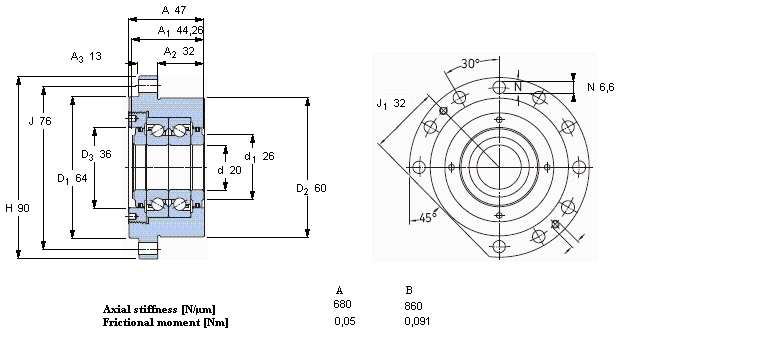

FBSA204/DB軸承尺寸表
| 角接觸推力球軸承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 預壓 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 20 | 60 | 47 | 22 | 49 | 1,8 | 7600 | 3800 | 1,1 | FBSA 204/ DB | BSDU 220 DD | |
FBSA204/DB相同內外徑、厚度
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- FBSA204/DF軸承
- 20
- 60
- 47
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA204/DB軸承
- 20
- 60
- 47
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
FBSA204/DB軸承品牌互換
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- FBSA204/DB軸承
- 20
- 60
- 47
- 角接觸推力球軸承 for screw drives, cartridge units with flanged housing
