SKF軸承BEAM020068-2Z/PE
BEAM020068-2Z/PE軸承
更新日期：2016/8/8 手機版：BEAM020068-2Z/PE軸承 點擊量提醒：基于SKF公司在BEAM020068-2Z/PE軸承制造工藝上的不斷改進，SKF BEAM020068-2Z/PE軸承的載荷能力和極限轉速都在不斷提高，因此，最新的SKF BEAM020068-2Z/PE軸承技術參數我們并未列出，上表僅列出基本尺寸參數供用戶參考，選型時請與工程師聯系。
- 型號：BEAM020068-2Z/PE
- 品牌：SKF
- 系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- 內徑：20 mm
- 外徑：68 mm
- 厚度：28 mm
【電話：020-36026999】

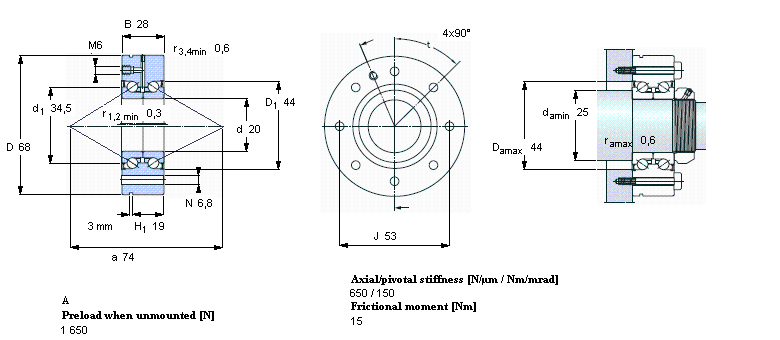

BEAM020068-2Z/PE軸承尺寸表
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 20 | 68 | 28 | 26 | 46,5 | 1,73 | 6000 | 0,61 | BEAM 020068-2Z/PE | BEAM 20/68/Z SQP60 | |
BEAM020068-2Z/PE相同內外徑、厚度
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- BEAM020068-2RS軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2RS/PE軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2Z軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2Z/PE軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- INA
- ZKLF2068-2RS軸承
- 20
- 68
- 28
- 推力角接觸球軸承
- INA
- ZKLF2068-2RS-PE軸承
- 20
- 68
- 28
- 推力角接觸球軸承
- INA
- ZKLF2068-2Z軸承
- 20
- 68
- 28
- 推力角接觸球軸承
- FAG
- ZKLF2068-2RS軸承
- 20
- 68
- 28
- 推力角接觸球軸承
- FAG
- ZKLF2068-2RS-PE軸承
- 20
- 68
- 28
- 推力角接觸球軸承
- FAG
- ZKLF2068-2Z軸承
- 20
- 68
- 28
- 推力角接觸球軸承
BEAM020068-2Z/PE軸承品牌互換
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- BEAM020068-2Z/PE軸承
- 20
- 68
- 28
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
