SKF軸承BEAM017062-2Z
BEAM017062-2Z軸承
更新日期：2016/8/8 手機版：BEAM017062-2Z軸承 點擊量提醒：上表僅提供基本尺寸，由于SKF公司在角接觸推力球軸承 for screw drives, double direction, for bolt mounting產品上持續的工藝改進，BEAM017062-2Z軸承的內部設計可能有所改變，但這不影響SKF BEAM017062-2Z軸承的基本尺寸結構，若無特殊要求，您可以放心選用此型號。
- 型號：BEAM017062-2Z
- 品牌：SKF
- 系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- 內徑：17 mm
- 外徑：62 mm
- 厚度：25 mm
【電話：020-36026999】

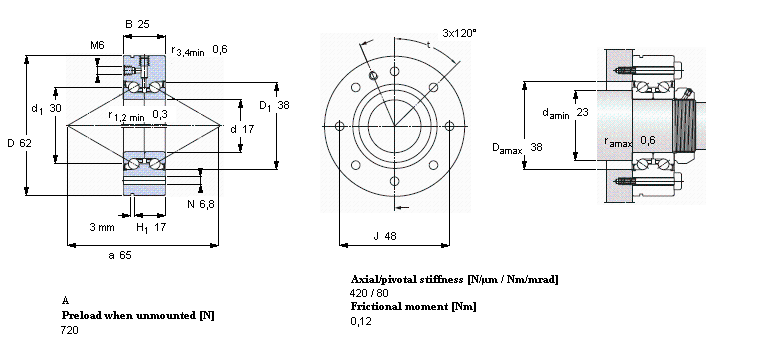

BEAM017062-2Z軸承尺寸表
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 17 | 62 | 25 | 19 | 31 | 1,16 | 6300 | 0,45 | BEAM 017062-2Z | BEAM 17/62/Z 7P60 | |
BEAM017062-2Z相同內外徑、厚度
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- INA
- ZKLF1762.2RSPE軸承
- 17
- 62
- 25
- 推力角接觸球軸承
- FAG
- ZKLF1762-2RS軸承
- 17
- 62
- 25
- 推力角接觸球軸承
- FAG
- ZKLF1762-2RS-PE軸承
- 17
- 62
- 25
- 推力角接觸球軸承
- FAG
- ZKLF1762-2Z軸承
- 17
- 62
- 25
- 推力角接觸球軸承
- SKF
- BEAM017062-2RS軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2RS/PE軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2Z軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2Z/PE軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
- INA
- ZKLF1762.2RS軸承
- 17
- 62
- 25
- 推力角接觸球軸承
- INA
- ZKLF1762.2Z軸承
- 17
- 62
- 25
- 推力角接觸球軸承
BEAM017062-2Z軸承品牌互換
- 品牌
- 型號
- 內徑mm
- 外徑mm
- 厚度mm
- 系列
- SKF
- BEAM017062-2Z軸承
- 17
- 62
- 25
- 角接觸推力球軸承 for screw drives, double direction, for bolt mounting
