S7022DB/P7軸承
SKF訂購SKF S7022DB/P7軸承，請隨時與我們聯系，我們將根據匯率的波動為您提供實時準確的價格，確保以最優(yōu)惠的價格為您提供優(yōu)質的SKF S7022DB/P7軸承。
型號：S7022DB/P7
品牌：SKF
內徑：110
外徑：170
厚度：28
系列：角接觸球軸承, 精密, S .. DB, sealed, contact angle 25°
【更新日期：2016/8/8 電腦版 S7022DB/P7軸承】

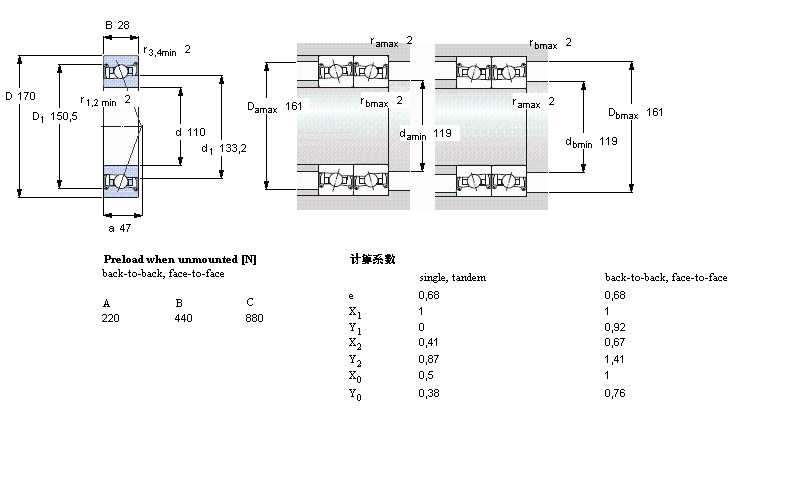

S7022DB/P7軸承
| 角接觸球軸承, 精密, S .. DB, sealed, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態(tài) | 靜態(tài) | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 110 | 170 | 28 | 46,8 | 60 | 2,12 | 8500 | - | 2,00 | S7022 DB/P7 | - | |
